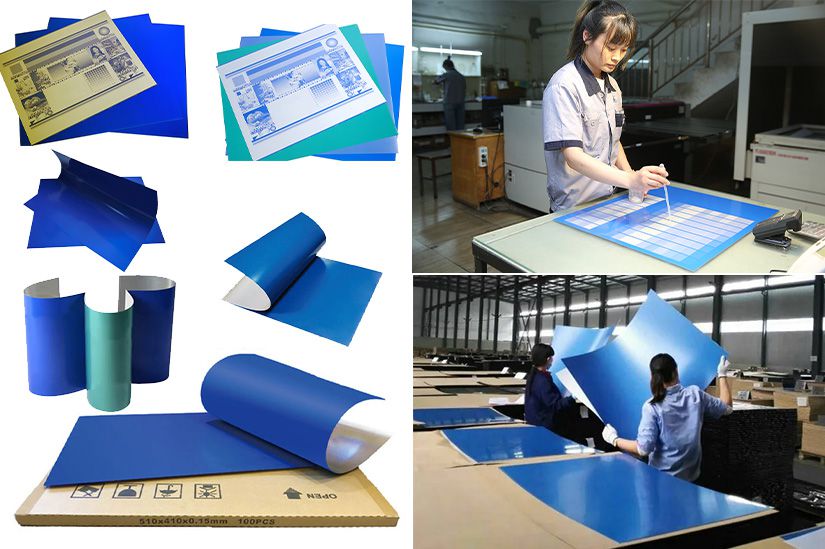

BCM supply thermal CTP plates, positive CTP plates, single layer CTP plates, double layer CTP plates, positive CTCP plates, PS plates and processless plates.
CTP plates are high quality aluminum plate and the use of unique plate base treatment. Products are environmental friendly prevending chemical pollution.
BCM’S CTP plate have high sensitivity, good hydrophilic, well ink-water balance, Long Run-length, best market compatibility, so it is extensively used commercial printing and newspaper printing. Whether conventional or alcohol wet plate can output the, clear, excellently, perfectly colorful prints.
Type | Thermal CTP Plate | CTCP/PS Plate |
Thickness | 0.15 mm, 0.2 mm, 0.25 mm, 0.30 mm, 0.4 mm | 0.15 mm, 0.2 mm, 0.25 mm, 0.30 mm, 0.4 mm |
Color | Blue | Blue |
Sensitive light source | 830nm | 405nm |
Resolution | 1-99%@300lpi/10umFM | 2-99%@200lpi/10umFM |
Developer | CTP developer is divided into original solution (white cover) and replenishhing solution (red cover), dynamic replenishment amount 80-100ml/m2, static replenishment amount 80ml/h | CTCP Liquid, Working liquid 1:4 – 1:5, Replenish 1:3.5, Dynamic supplement 90-100ml/m2, static replenishment amount 80ml/h |
Developing Temperature | 22°C -22°C | 23°C -25°C |
Development time | 25±5s | 25±5s |
Printing Durability | Unbaked version >70,000 impressions after banking version >150,000 impressions | 50,0000-100,000 copies |
Storage Conditions | Store in a dry environment at a temperature of 5-30°C | Store in a dry environment at a temperature of 5-30°C |
Storage period | 12 Months | 18 Months |
Features:
Environmental formula development
Excellent stability
High compatibility
Simple to use
Extreme adaptability
CTP/CTCP plates are used primarily in the printing industry, particularly for offset printing.
They enable high-quality printing for commercial materials like brochures, magazines, and catalogs. CTP plates are also used in packaging, producing labels, and specialty printing on various substrates. Their efficiency benefits short-run jobs and daily newspaper production.
