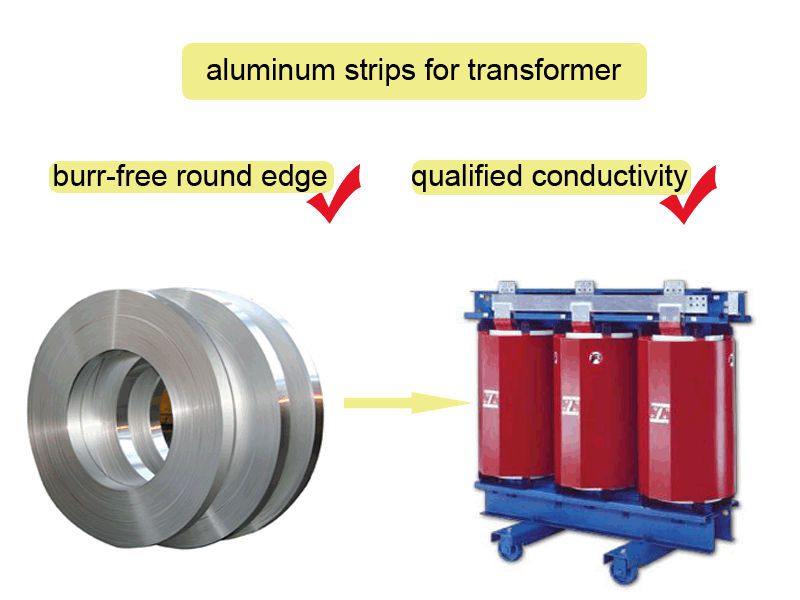

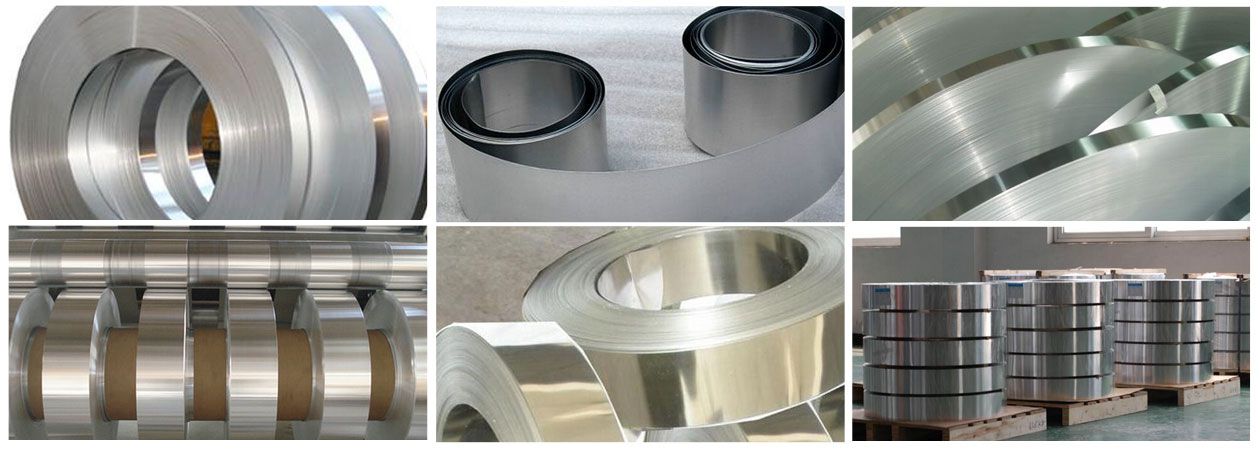

Aluminium foil/strip for transformers winding, also called aluminum transformer foil/strips, which are mainly used in the dry type and oil-immersed transformers manufacturing industries.
With high conductivity, good corrosion resistance and beautiful appearance, transformer aluminum strips are essential materials in the process of producing transformers.
Grades | 1050, 1350, 1060, 1070 |
Temper | O(soft) |
Thickness | 0.2mm-3.5mm |
Width | 10mm-1600mm |
Edge | Round |
Quantity Tolerance | ±10% |
Paper Core Internal | Ø 150mm,Ø300mm, Ø400mm, Ø500mm paper core, special internal diameter core and without paper core |
Surface Treatment | The strip has a smooth surface, free from scratches and impurities |
Electrical Conductivity | Transformer windings made of 1050 O in annealed condition is guaranteed to be better than 60 % ACS. |
Applications | Transformer Winding |

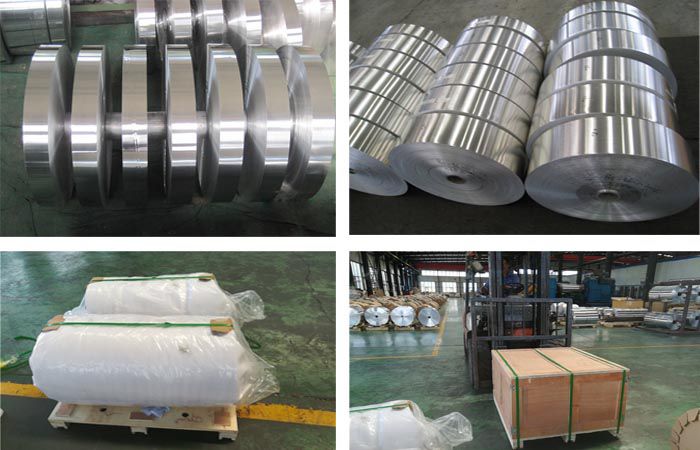

Packaging | Wooden Pallet/Wooden Case |
| TOLERANCE | |||||
| Major Brand | A1060(O) A1050(O) | ||||
| Thickness | 0.2-0.4 | 0.4-0.8 | 0.9-1.1 | 1.2-1.6 | 1.8-2.0 |
| tolerance | ±0.01 | ±0.015 | ±0.02 | ±0.025 | ±0.03 |
| Width | <100 | 100-200 | 201-500 | 501-1250 | >1250 |
| tolerance | ±0.1 | ±0.2 | ±0.2 | ±1 | ±2 |
| |||||
| The width of aluminum belt | burr’s height | collapsed side’s height | |||
| <0.2 | 0.01 | ≥0.05-0.1 | |||
| 0.2-1.0 | 0.015 | ||||
| 1.1-1.5 | 0.02 | ||||
| >1.6 | 0.03 | ||||
| |||||
| U.T.S: 60-95N/mm2 | Elongation: >25% | ||||
| Density in 20℃ :2.703kg/dm3 | Max.resistance in 20℃:≤0.02825Ωmm2/m | ||||
