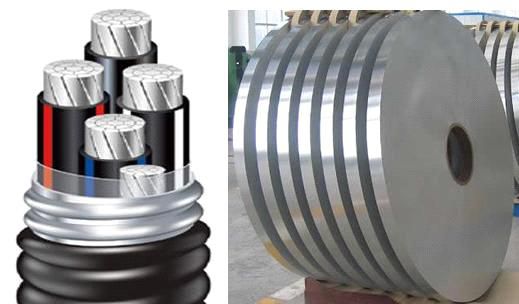

Aluminum strip/foils are often used in cable wrapping, due to their lightweight, corrosion resistance, and malleability.
Aluminum foil/strip is a remarkable material that has properties which can help boost cable performance:
- Conductivity: Aluminum has a reasonable level of conductivity that can help reflect signals.
- Shielding: The reflective surface can block various forms of electromagnetic interference.
- Accessibility: It is a readily available household item.
| Alloy | Temper | Thickness(mm) | Width(mm) | Length (mm) | Application |
| 1145, 8011, 1200 | O | 0.15~0.20 | 15mm~500 | 2050 | telecommunication cable |
| Film: EMAA/EAA 0.05mm tolerance +/-0.005mm Both sides laminated and one side laminated | |||||
| Remark: special specifications can be produced accordingly to your requirement. | |||||
| Heat resistance (N/cm) | ≥17.5 |
| Peeling strength (N/cm) | ≥6.13 |
| Water resistance (68+/-1C, 168H) | ≥6.13 |
| Tensile Strength (Mpa) | ≥54 |
| Elongation rate % | ≥15 |
| Anticorrosion | (0.1mol/L, NaoH, 480h) ≥7 |
| Dielectric strength 1kVd.c.1.min ELE (single side laminated tape) | No discharged |
| Dielectric strength 2kVd.c.1.min EL (Double surfaces laminated tape) | No discharged |
