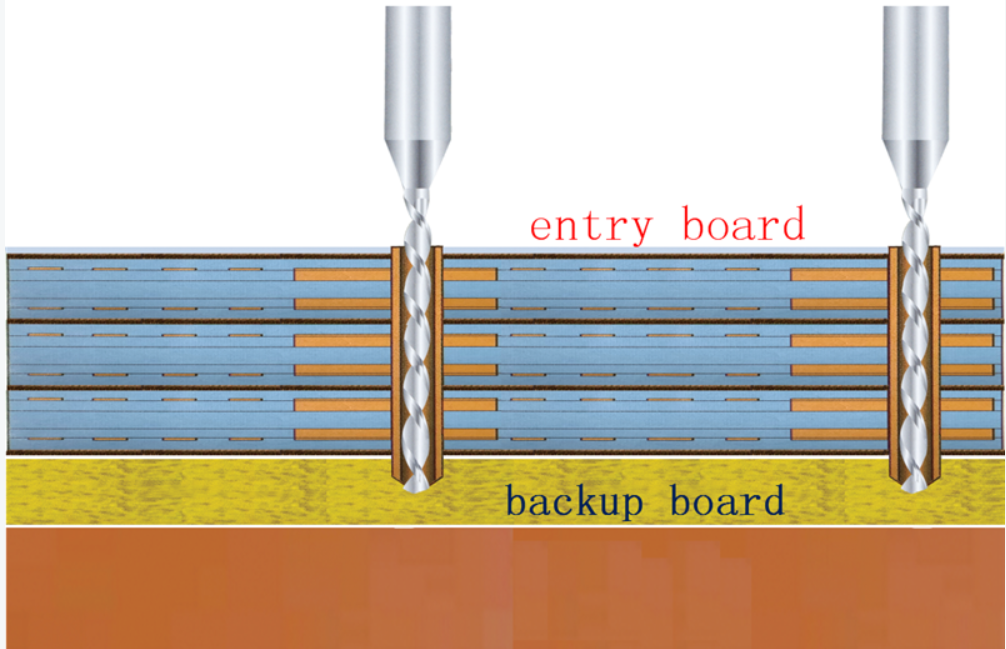

Aluminum drilling entry sheet used for PCB (Printed Circuit Board) drilling are utilized as a backing material during the drilling process of PCBs.
The application of a lubricating surface coating further enhances the usability of the product, ensuring high precision and premium quality during the drilling process.
Aluminum sheet for PCB Material | |||||
Alloy | Temper | Specification(mm) | |||
Thickness | Width | Length | Remarks | ||
1100 | H18 | 0.14-0.18 | 1244 | 1092 1041 | Produce various specifications according to customers' requirements |
| 1220 | 1067 1016 914 | ||||
TECHNICAL DATA SHEET
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Other Al | Al | |
| each | total | |||||||||||
1100 | Si +Fe:0.95 | 0.05-0.20 | 0.2 | - | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
MECHANICAL PROPERTY
Alloy | Temper | Thickness(mm) | U.T.S(Mpa) | Elongation(%) |
1100 | H18 | 0.14-0.18 | 170-190 | >=2 |
TOLERANCE
Thickness(mm) | Width(mm) | Length(mm) | Diagonal(mm) |
+-0.005mm | +1 -0 | +1 -0 | <=2 |
1. High Thermal Conductivity: The aluminum material effectively dissipates heat, reducing drill bit temperatures and minimizing the risk of resin buildup in the chip grooves.
2. Superior Flatness and Surface Hardness: These properties ensure drilling precision, reduce drill deflection, and prevent drill breakage, enabling a smooth and reliable manufacturing process.
3. Burr Reduction: With high surface hardness and material rigidity, burr formation is significantly minimized, resulting in improved hole wall quality.
4. Circuit Board Protection: The aluminum drilling entry sheets safeguard circuit boards by preventing scratches and pressure marks, ensuring the integrity of the PCB surface.
